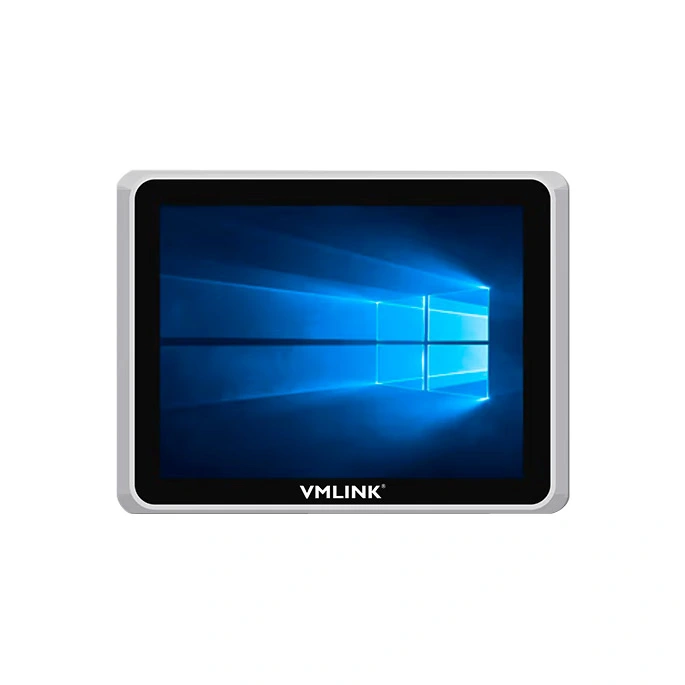

VTM-800 Industrial Embedded Touch Displays

Features of VTM-800 Industrial Embedded Touch Displays

• Precise Touch, Responsive: Industrial-grade touchscreen for more accurate touch control.

• Wide Temperature Operation: Selected materials ensure resistance to high and low temperatures, allowing stable operation in both extreme cold and heat.

• Fast Operation with Intelligent Silent Mode: Low noise and better cooling performance enhance stability and effectively protect the overall lifespan of the device.

• IP65 Dust and Water Splash Protection: Resistant to water splashes and dust, making it more suitable for use in harsh environments.

• High-Definition Screen: LED high-definition industrial control screen that reproduces true colors with fine and vibrant details.

Specification of VTM-800 Industrial Embedded Touch Displays

Product Development Model		VTM-800
Display Screen	Dimensions	8 inches
	Resolution	800*600/1024*768
	Screen Aspect Ratio	4:3
	Brightness	250 cd/m²
	Viewing Angle	-70~70°(H)
		-50~70°(V)
	Contrast Ratio	500:1
	Backlight	LED
Touchscreen	Touchscreen	5-Wire Resistive Touchscreen (Optional Capacitive Touchscreen)
	Touch Lifespan	10 Million Clicks with 250g Force
External Interfaces	Display Input	1xVGA,1xHDMI
	Touch Input Interface	lxUSB type B
	Power Input	12VDC Phoenix Terminal
Mechanical	Dimensions (mm)	230.3*177.3*41.4
	Cutout Dimensions (mm)	209.7*167.5
	Mounting Method	Panel Mount, Wall Mount, Desktop Mount, VESA75 Arm Mount
Environmental	Operating Temperature	0℃~50℃
	Storage Temperature	-20℃~60℃
	Storage Humidity	10~90%@30℃, Non-condensing

Application Range of VTM-800 Industrial Embedded Touch Displays
