IPC-304-M3101 I7-8700/8G/1T/300W Wall-mounted Industrial PC

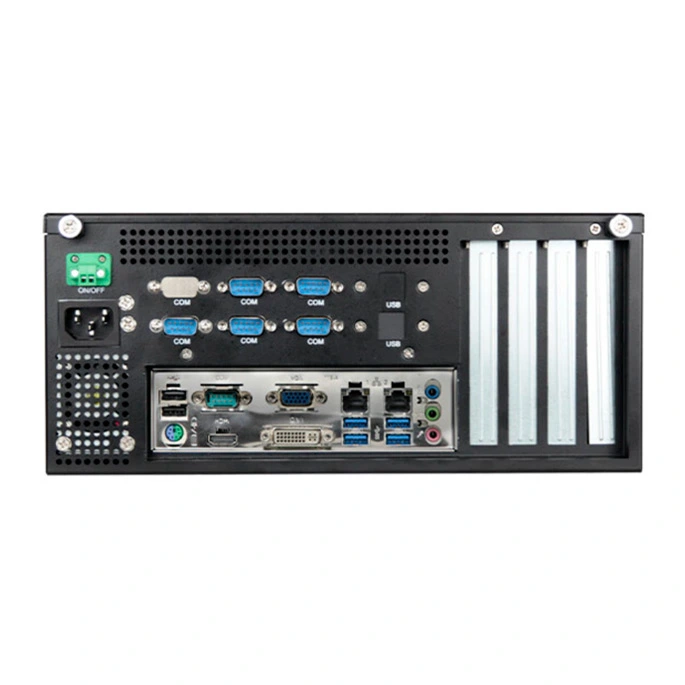

Detailed Drawing of IPC-304-M3101 I7-8700/8G/1T/300W Wall-mounted Industrial PC

Features of IPC-304-M3101 I7-8700/8G/1T/300W Wall-mounted Industrial PC

• Supports dual-channel, four expansion slots: can support 2 DDR3 DIMM memory slots, up to 32GB, 1 PCIE x16, 1 PCIE x4, and 2 standard PCI slots.

• Rich interfaces to meet various application needs: optional 6 COM ports, 4 USB 3.0 ports, 4 USB 2.0 ports, and one PS/2 keyboard and mouse port.

• Excellent compatibility, supports multiple systems: Windows 10/Windows 11/Ubuntu/Linux. For other operating systems, please contact customer service.

• Powerful performance, widely applicable: versatile for various scenarios, meeting your industry needs with strong performance and high compatibility, ensuring smooth operation of software across different industries.

Specification of IPC-304-M3101 I7-8700/8G/1T/300W Wall-mounted Industrial PC

Model	IPC-304-M3101
Processor	Supports 6-9th Gen Intel® Core™ i9/i7/i5/i3 CPU
Chipset	Intel® H310C
Memory	2× DDR4 UDIMM, supports up to 32GB
Hard Drive	4× SATA
Network	Onboard 2 Intel® 10/100/1000Mb adaptive network cards
Display	Provide VGA+HDMI+DVI-D display interfaces
USB	4× USB 3.0, 4× USB 2.0
Serial Port	6×COM
Expansion Interface	1× PCI-E ×16 slots, 1× PCIE ×4 slots, 2× PCI slot
Operating Temperature	0℃ to 60℃
Storage Temperature	-20℃ to 85℃
Dimensions	305×292×134 (mm)
Weight	5.5kg(approx.)
Power Input	Standard ATX 24-pin power supply
Watchdog Timer	Watchdog function, supports system reboot from 1 to 255 seconds
Operating System (OS)	Windows 7/8/10, Linux
