IPC-610-A2701 I5-6500/16G/128G+1T/300W 4U Rackmount PC

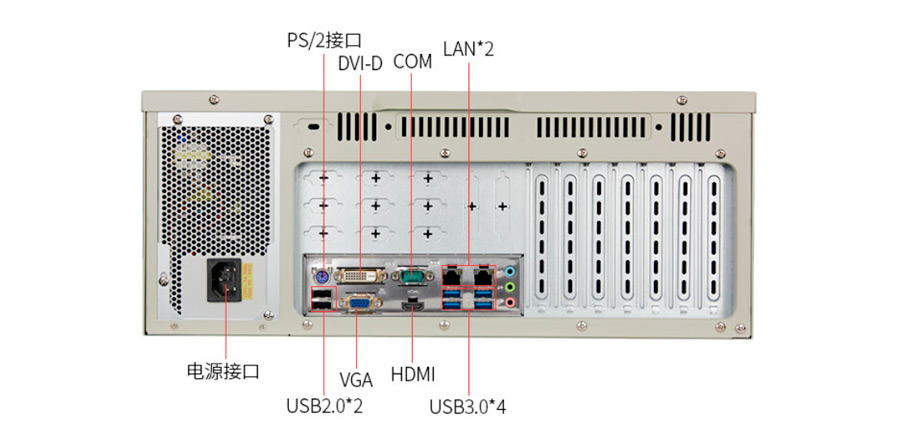

Detailed Drawing of IPC-610L-M43H I3-6100/8G/256G/300W 4U Rackmount PC

Features of IPC-610L-M43H I3-6100/8G/256G/300W 4U Rackmount PC

• Industrial-grade motherboard, diverse expansion options, 4*DDR4 memory, 2*PCI, 2*PCIE×16, 3*PCIE×4.

• Rich interfaces, easy to use.

• Multi-system compatibility: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.

• Multi-scenario applications, wide industry applicability: Strong compatibility, smooth operation of software across various industries.

Specification of IPC-610L-M43H I3-6100/8G/256G/300W 4U Rackmount PC

Model	IPC-610-A2701
Processor	Intel® 6/7/8/9th Core™ i3/i5/i7/i9
Chipset	Intel® Q270
Memory	4x DDR4-2400/2666/2933 UDIMM, supports up to 128GB
Hard Drive	4x SATA, 1x M.2 SSD
Network	2× Intel 10/100/1000Mbps Network Interfaces
Display	1× VGA, 1× HDMI, 1× DVI-D, triple independent display
USB	6× USB 3.0, 4× USB 2.0
Serial Port	6×COM(1*RS232/RS485/RS422,1*RS232/RS485)
Expansion Interface	2× PCIe ×16 slots, 3× PCIe ×4 slots, 2× PCI slot
Operating Temperature	-0°C to 60°C; 5% to 95% (non-condensing)
Storage Temperature	-20°C to 75°C; 5% to 95% (non-condensing)
Dimensions	427×450×175.7 (mm)
Weight	approximately 12 kg
Power Input	300W (optional 550W)
Watchdog Timer	255 levels, programmable seconds/minutes, supports timeout interrupt or system reset
Operating System (OS)	Windows 7/8/10, Linux

Application Range of IPC-610L-M43H I3-6100/8G/256G/300W 4U Rackmount PC
