EPC-6002 I7-7820HQ/16G/512G/12V Embedded Industrial PC

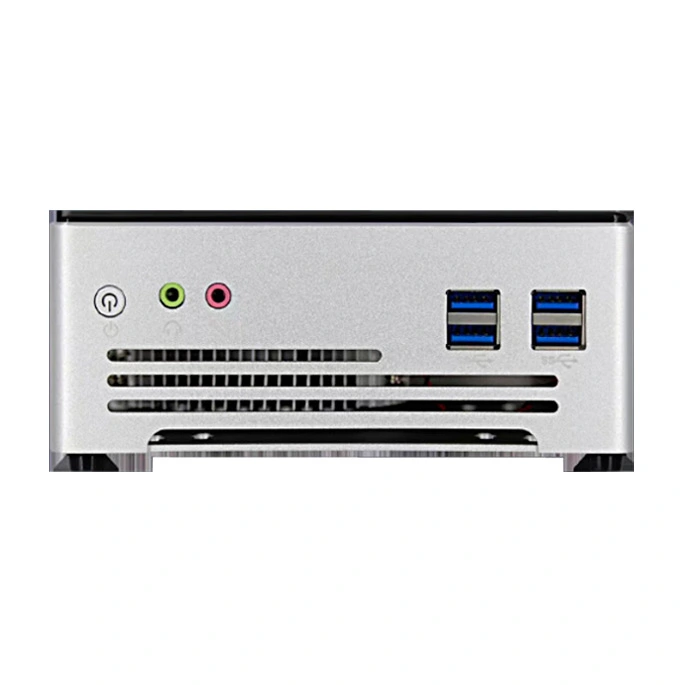

Detailed Drawing of EPC-6002 I7-7820HQ/16G/512G/12V Embedded Industrial PC

Features of EPC-6002 I7-7820HQ/16G/512G/12V Embedded Industrial PC

• Rich Interfaces: A variety of interfaces provide you with more 'expansion slots.’


• Fanless Cooling, Noise-Free Design: The body is made of aluminum alloy, allowing heat to be quickly dissipated from the inside. It features noise-free rapid cooling, moisture and dust resistance, and protection for internal components.

• 24/7 Continuous Operation: Operates continuously 24/7 with high stability and high reliability.

• Industrial Protection, Pressure and Interference Resistance: The entire machine is made of aluminum alloy with a sealed design, offering dust and corrosion resistance, strong pressure resistance, and durability, making it more suitable for use in automation equipment.

• High-Definition Display, Synchronous and Asynchronous Display: Supports VGA and HDMI synchronous/asynchronous display, enabling multi-task synchronous split-screen, highlighting higher efficiency.

• Compatible with Multiple Operating Systems: Supports various systems. Please contact customer service if you need other systems.

Specification of EPC-6002 I7-7820HQ/16G/512G/12V Embedded Industrial PC

Model	EPC-6002
Processor	7th Generation Intel Core i7-7700HQ/7820HQ CPU
Memory	Two DDR4 SODIMM slots, supporting up to 32GB
Display	HDMI+DP, supports 4K UHD
Network	2 x GbE RJ45 Realtek 8111H

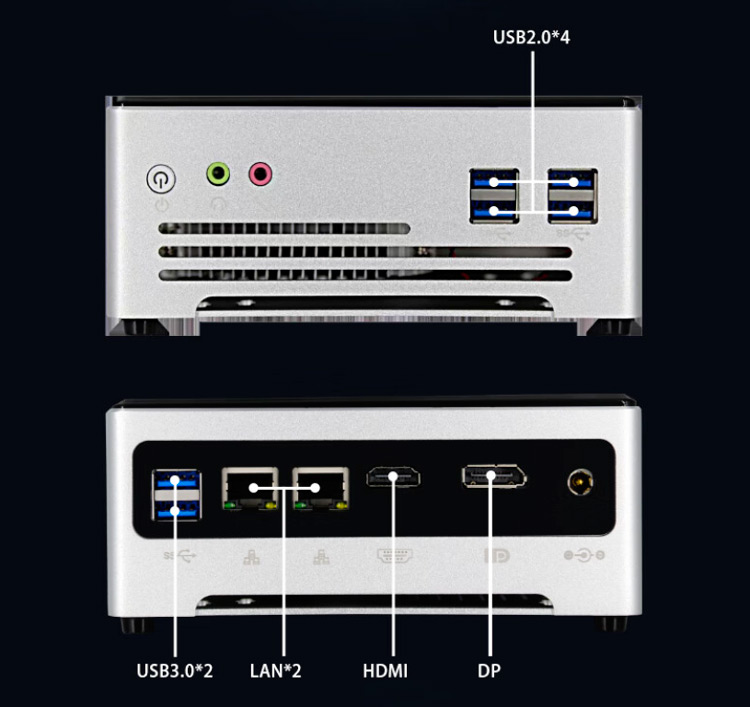

I/O Interfaces	4 x USB2.0, 2 x USB3.0 1 x Audio Line-out, 1 x Audio Mic-in 1 x Power Button 1 x Power input 1 x DP
Storage	2 x M.2 1 x HDD/SSD
Expansion Slots	Mini-PCIe x1 half-size, supports WiFi and Bluetooth
System Support	Windows®7/8/10, WES 7, LINUX
Watchdog Timer	1~255 seconds programmable settings
Material	Aluminum + plastic
Mounting Method	Supports desktop and wall mounting
Dimensions	150 x 135 x 66 mm
Weight	0.70 Kg
Power Input	DC 12V

Application Range of EPC-6002 I7-7820HQ/16G/512G/12V Embedded Industrial PC
