IPC-307-A4701 I7-10700/8G/1T/300W Wall-mounted Industrial PC

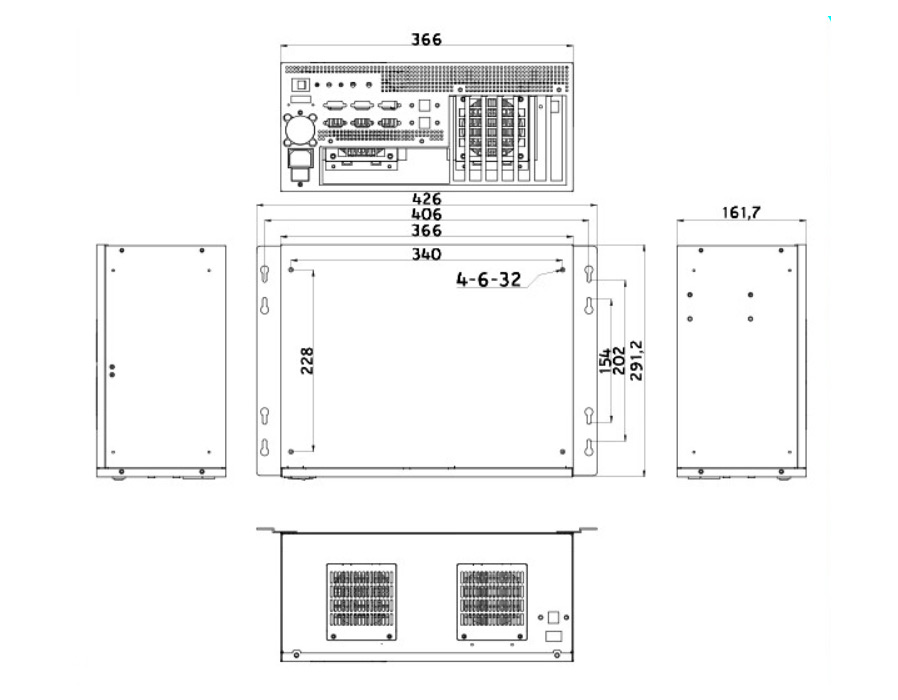

Detailed Drawing of IPC-307-A4701 I7-10700/8G/1T/300W Wall-mounted Industrial PC

Features of IPC-307-A4701 I7-10700/8G/1T/300W Wall-mounted Industrial PC

• Intel® Core™ 10th/11th Generation Processors: Supports Intel® 10th/11th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® processors, LGA1151 Socket, with a maximum power consumption of up to 95W.

• Motherboard: Supports dual-channel memory with four U-DIMM slots, compatible with DDR4 2400/2666/2933MHz, and up to 128GB of memory. It includes 2 PCI slots, 3 PCIe x4 slots, and 2 PCIe x16 slots, supporting various module expansions.

• Efficient Operation for Various Industries: 2 PCI expansion slot, which can support serial cards, image capture cards, motion control cards, and I/O cards.

• Compatible with Various Types of Cards: 3 PCIe x4 expansion slots, which can support serial cards, network cards, and USB cards.

• Optional Operating System: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.

Specification of IPC-307-A4701 I7-10700/8G/1T/300W Wall-mounted Industrial PC

Model	IPC-307-A4701
Processor	lntel® 10/11Core™ i3/i5/i7/i9
Chipset	Intel® Q470
Memory	4×DDR4 2666/2933UDIMM, up to 128GB
Hard Drive	4×SATA, 1×M.2 SSD
Network	2×intel 10/100/1000Mbps network interface
Display	1×VGA, 1x HDMl, 1×DVI-D, Triple Independent Display
Audio	Adopts HDA standard, supports rear panel Mic-in, Line-in, Line-out
USB	6×USB3.0, 7× USB2.0
Serial Port	6xCOM (COM1, RS232, DB9, COM3 supports RS-232/RS422/RS485 mode selection)
Expansion Interface	2×PCle ×16 slots，3×PCle ×4 slots,2×PCI slots
Operating Temperature	-0°C to 60°C; 5% to 95% (non-condensing)
Storage Temperature	-20°C to 75°C; 5% to 95% (non-condensing)
Dimensions	366×162×292(mm)
Weight	9kg(approx.)
Power Input	300W (optional 550W)
Watchdog Timer	255 levels, programmable seconds/minutes, supports timeout interrupt or system reset
Operating System (OS)	Windows 7/8/10, Linux
