VBX-H611 I3-12100/16G/256G/19~24V Embedded Industrial PC

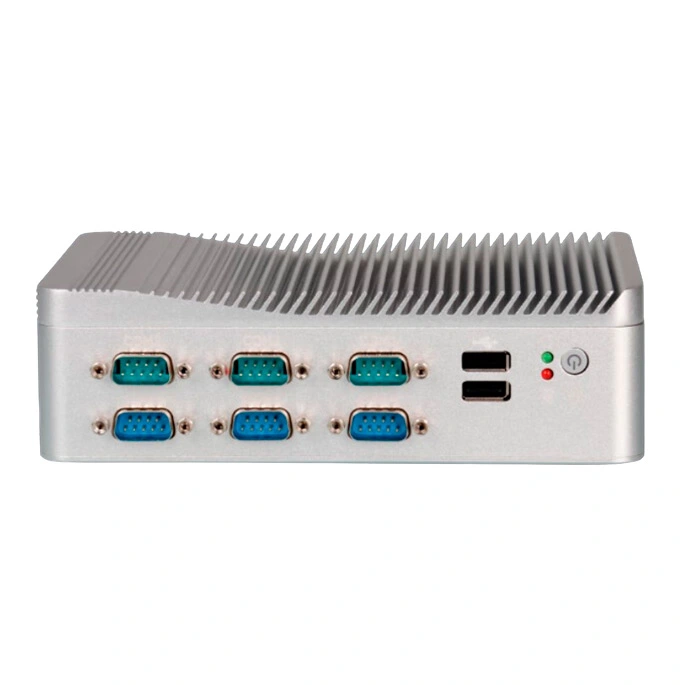

Detailed Drawing of VBX-H611 I3-12100/16G/256G/19~24V Embedded Industrial PC

Features of VBX-H611 I3-12100/16G/256G/19~24V Embedded Industrial PC

• 24/7 Continuous Stable Operation: Capable of stable operation 24 hours a day, 365 days a year, in various environments, easily handling various industrial settings and other locations.

• Fully Enclosed Fanless Cooling: The entire machine features aluminum alloy cooling and a fully enclosed design, effectively preventing dust from entering the interior. This extends the machine's lifespan. The fanless, low-noise cooling significantly enhances operational stability and is highly energy-efficient.

• Diverse Interfaces: Rich in interfaces, capable of meeting various device connection needs.

• Powerful Expansion Capabilities: Optional dual or quad expansion slots. The basic model can be flexibly configured with LAN/COM/CAN ports, etc. Dual expansion slots can be optionally configured with VBX-H611-1E1: 1*PCIe x16 + 1*PCI, VBX-H611-2E: 1*PCIe x16 + 1*PCIe x1. Quad expansion slots can be optionally configured with VBX-H611-1E3: 1*PCIe x16 + 3*PCI.

Specification of VBX-H611 I3-12100/16G/256G/19~24V Embedded Industrial PC

Model	VBX-H611
Processor	lntel® 12th/13th Core
Chipset	Intel® H610
Memory	2 x DDR5 4800MHz SO-DIMM, up to 32GB
Hard Drive	2 x 3.0 SATA for 2.5 HDD/SDD, 1x M.2 2242 Slot
Network	1 x RJ45 intel® i219LM(10/100/1000 Mbps) 3 x RJ45 intel® i210AT GbE(10/100/1000/2500 Mbps)
Display	1 x VGA, 1 x HDMI
USB	4 x USB3.0, 4 x USB2.0
Serial Port	2 x RS232/422/485, 4 x RS232(Pin head optional)
Expansion Interface	1 x Mini-PCle slot, 1x M.2 2230 slot(Supports WiFi modules)
Operating Temperature	-10℃~40℃
Storage Temperature	-40°C~85℃
Humidity	5% ~95%, Non-condensing
Dimensions	200 x 230 x 78 mm(Basic Model) 200 x 230 x 129 mm(2-Slot Expansion Model) 200 x 230 x 169 mm(4-Slot Expansion Model)
Weight	3.5kg(Basic Model), 4.2kg(2-Slot Expansion Model), 4.9kg(4-Slot Expansion Model)
Power Input	19-24V DC, 4-pin phoenix connector
Watchdog Timer	Programmable 255 levels timer interval
Remote Switch	1 x Remite ON-OFF
Operating System (OS)	Windows10, Ubuntu20.04
