IPC-610L-A6701 I5-12500/16G/128G+1T/300W 4U Rackmount PC

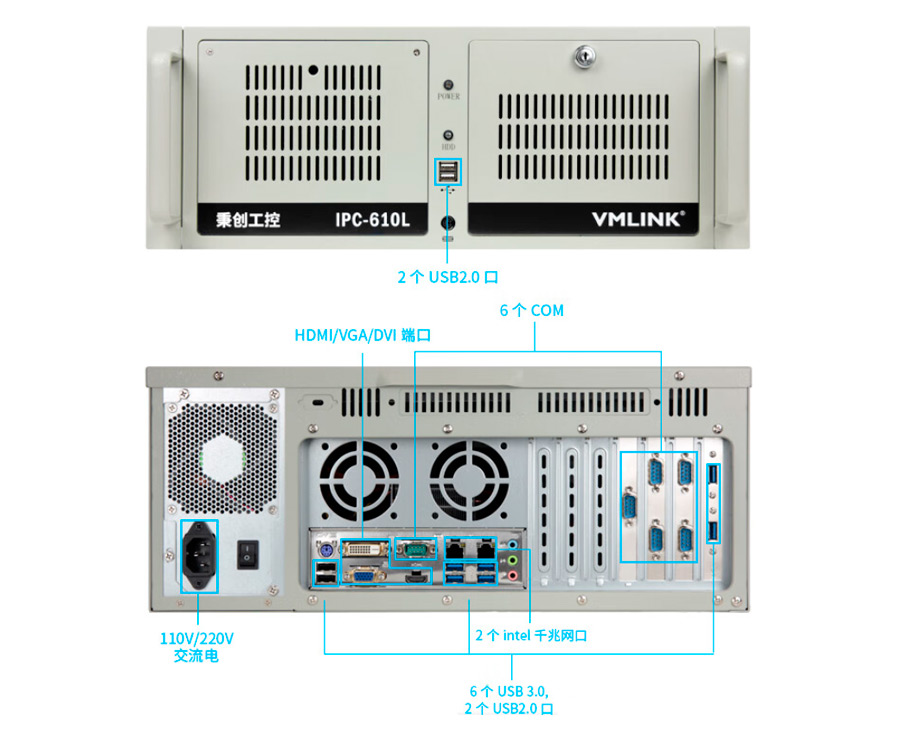

Detailed Drawing of IPC-610L-A6701 I5-12500/16G/128G+1T/300W 4U Rackmount PC

Features of IPC-610L-A6701 I5-12500/16G/128G+1T/300W 4U Rackmount PC

• Intel® Core™ 6th/7th/8th/9th Generation Processors: Supports Intel® 6th/7th/8th/9th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® processors, LGA1151 Socket, with a maximum power consumption of up to 95W.

• Ultra-large memory, multitasking made easy: Supports dual channel, has four U-DIMM slots, supports DDR4 3200 memory, with a maximum capacity of 128GB, ultra-fast response.

• Multiple Expansion Slots: Provides more options with built-in 1 PCI slots, 4 PCIe x4 slots, and 2 PCIe x16 slots, supporting various module expansions.

• Rich Interfaces: Meets daily industrial needs with 10 USB ports, 6 COM ports, 1 PS/2 port, and support for HDMI, VGA, and DVI interfaces, enabling triple independent display.

• Powerful Performance: Compatible with multiple systems, pre-installed with a trial version of Windows by default. For other operating systems, please contact us.

Specification of IPC-610L-A6701 I5-12500/16G/128G+1T/300W 4U Rackmount PC

Model	IPC-610L-A6701
Processor	Intel® Core™ i3/i5/i7
Chipset	Intel® Q670
Memory	4x 288PIN DDR4-3200 UDIMM, supports up to 32GB
Hard Drive	4x SATA, 1x M.2 SSD
Network	2× RJ45 network interfaces, dual 10 Gigabit Ethernet ports
Display	1× VGA, 1× HDMI, 1× DVI-D, triple independent display
USB	8× USB 3.0, 5× USB 2.0
Serial Port	6× COM (4× RS232, 1× RS232/RS485/RS422, 1× RS232/RS485)
Expansion Interface	2× PCIe ×16 slots, 4× PCIe ×4 slots, 1× PCI slot
Operating Temperature	0°C to 60°C; 5% to 95% (non-condensing)
Storage Temperature	-20°C to 75°C; 5% to 95% (non-condensing)
Dimensions	427×480×177 (mm)
Weight	approximately 14 kg
Power Input	300W (optional 550W)
Watchdog Timer	255 levels, programmable seconds/minutes, supports timeout interrupt or system reset
Operating System (OS)	Windows 10/11, Linux
