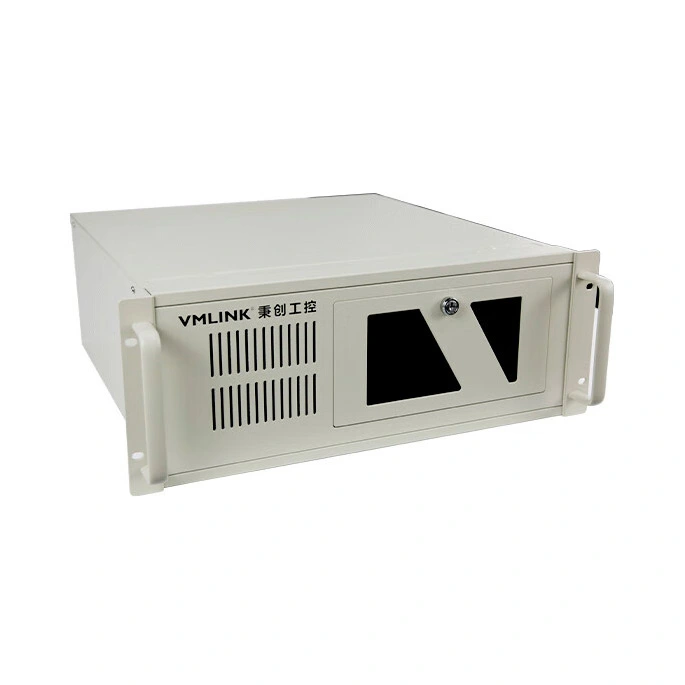

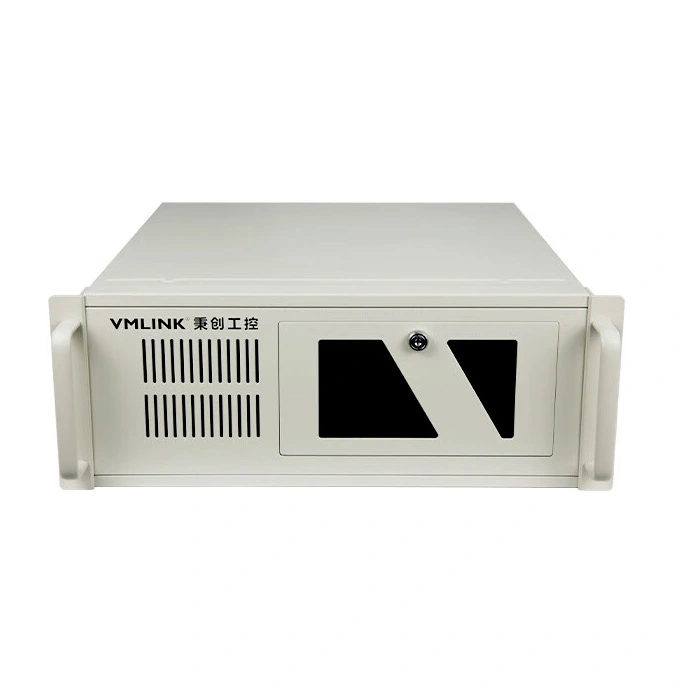

IPC-610-I812 I3-4130/4G/128G/300W 4U Rackmount PC

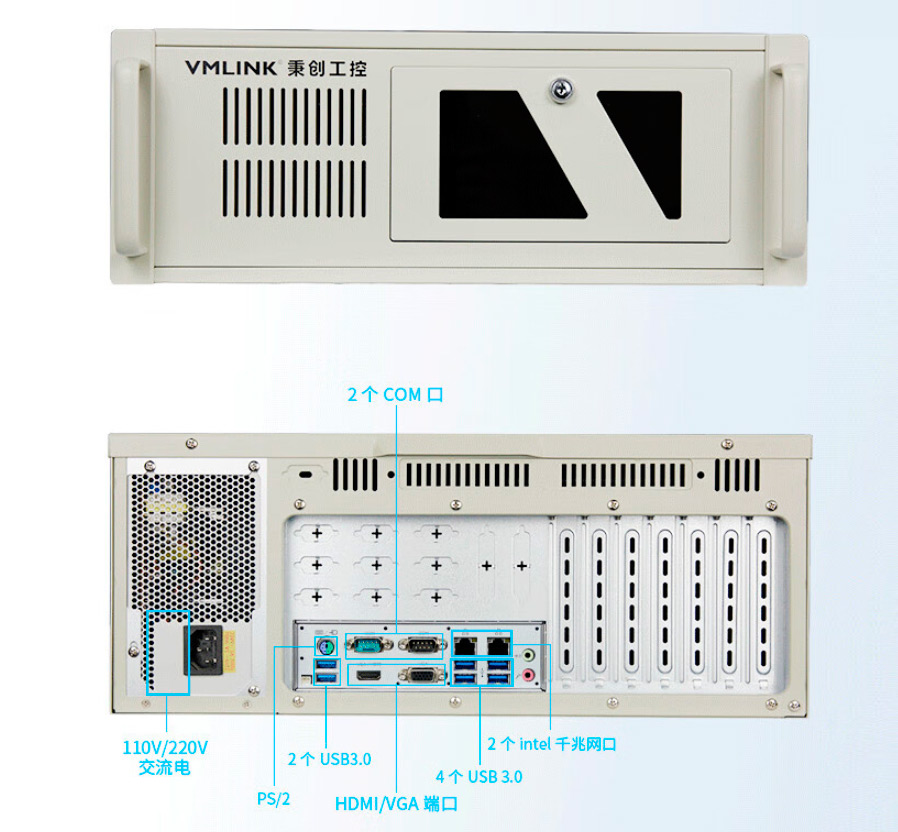

Detailed Drawing of IPC-610-I812 I3-4130/4G/128G/300W 4U Rackmount PC

Features of IPC-610-I812 I3-4130/4G/128G/300W 4U Rackmount PC

• lntel® 4th Gen Core™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1150 Support MAX CPU TDP: 84W

• Supports WiFi and 4G: Optional 3/4G communication and WiFi connection modules make remote wireless communication more convenient, suitable for a wider range of outdoor, mobile, and other industrial automation environments.

• Multiple COM Ports to Meet Various Industry Needs: 6 COM ports (expandable to 10), standard protocol RS232 (optional RS485). One adjustable RS485 serial port uses a DB9 connector, offering stable transmission and good compatibility. It can connect to various industrial terminal devices such as printers, industrial machine tools, and communication terminals.

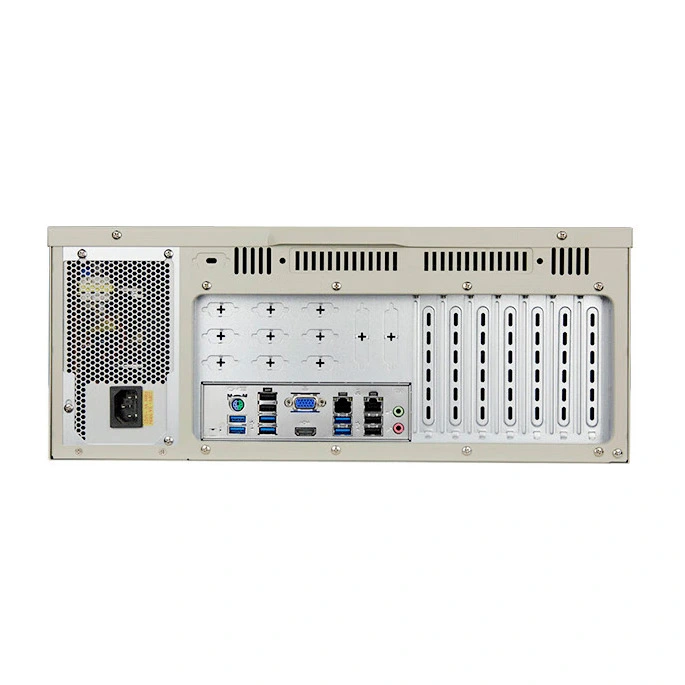

• Abundant Interfaces to Meet Daily Industrial Needs: 8 USB ports, 6 COM ports, 1 PS2 port, supports HDMI and VGA interfaces.

• Powerful Performance, Multi-System Compatibility: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.

Specification of IPC-610-I812 I3-4130/4G/128G/300W 4U Rackmount PC

Model	IPC-610-I812
Processor	Intel® 4th Core™ i3/i5/i7
Chipset	Intel® H81
Memory	2×1333/1600MHz DDR3 UDIMM, Up to 16GB
Storage	2× SATA, 1× Mini PCl-E Slot
Network	2× intel 10/100/1000Mbps network interface
Display	1× VGA, 1× HDMI
USB	6* USB3.0 (RearI/O, TYPE-A) 6* USB2.0 (Internal, Header)
Serial Port	2* RS232 (COM1/2, Connector) 1* RS232/RS485 (COM3, Box) 3* RS232 (COM4/5/6, Box)
Expansion Interface	1* PCI-E 16x Slot (PCI-E 3.0)
Operating Temperature	-0°C～60℃, 5%～ 95%(non-condensing)
Storage Temperature	-20℃～75℃, 5%～95%(non-condensing)
Dimensions	427*480 *177(mm)
Weight	14kg(approx.)
Power Input	300W(optional 500W)
Operating System (OS)	Windows XP/7/10, Linux
