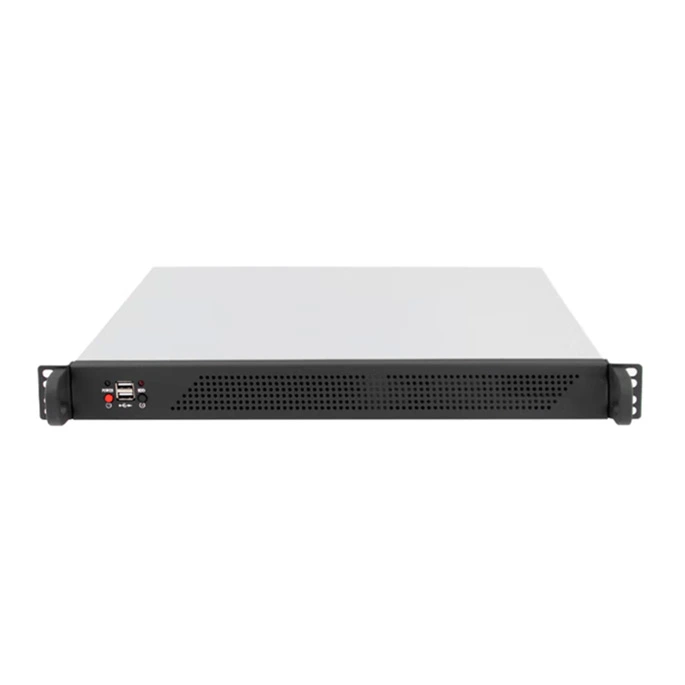

IPC-101-I1101 I3-6100/4G/256G/250W 1U Rackmount PC

Detailed Drawing of IPC-101-I1101 I3-6100/4G/256G/250W 1U Rackmount PC

Features of IPC-101-I1101 I3-6100/4G/256G/250W 1U Rackmount PC

• HDMI+VGA dual display for mirroring/extended mode, suitable for simultaneous operation of multiple devices.

• Multifunctional scenario applications to meet your industry needs, strong compatibility, smooth operation of software across various industries.

• Abundant interfaces to meet daily industrial needs: 10 USB ports, 2 COM ports, 1 PS2 port, supports HDMI and VGA interfaces.

• Powerful performance, multi-system compatibility: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.

• 24/7 continuous stable operation: Capable of stable operation 24 hours a day, 365 days a year, in various environments, easily handling various industrial settings and other locations.

Specification of IPC-101-I1101 I3-6100/4G/256G/250W 1U Rackmount PC

Model	IPC-101-I1101
Processor	lntel® 6/7/8/9th Generation CoreTM i3/i5/i7, Pentium®, Celeron@ CPU, LGA1151
Chipset	lntel® H110, TDP 6W
Display	1 * VGA(DB15/F): Support max resolution up to 1920x1200@60Hz 1 * HDMI (TYPE-A): Support max resolution up to 4096*2160@24Hz
Memory	DDR4-1866/2133, 2 * non-ECC U-DIMM Slot, Up to 64 GB
Storage	2 * SATA3.0 7P Connector 1 * Mini PCI-E Slot (mSATA3.0/4G/Wifi)
Network	2 * Realtek® 1Gbps PCle Ethernet Controller, RJ45
Audio	Realtek ALC6625.1 Channel HDA Codec, 1 * Front Audio Header (Line-Out+ MIC) 1 * Line-Out+ MIC 3.5mm Jack
Expansion Slot	2 * RS232 (COM1/2, Connector) 1 * RS232/RS485 (COM3, Header) 7 * RS232 (COM4/5/6/7/8/9/10, Header)
COM	2 * RS232 (COM1/2, Connector) 1 * RS232/RS485 (COM3, Header) 7 * RS232 (COM4/5/6/7/8/9/10, Header)
USB	8 * USB3.0 (Rear l/O, TYPE-A) 2 * USB2.0 (Rear l/O, TYPE-A) 6 * USB2.0 (Internal, Header)
Other Ports	1 * PS/2 1 * Micro SlM Card Slot 1 * CPU FAN Header 1 * System FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMoS Clear Jumper
System	Windows7/8.1/10, Linux
Temperature	Storage: -20~75℃ Operating: 0~60℃
BIOS	AMIUEFI BIOS (Support Watchdog Timer)
Power Supply	ATX Standard (20P＋4P) 1 * ATX 4P CPU Power Input Connector 1 * ATX 20P PowerInput Connector
